Home >> Filter Press Separation >> Hydraulic Filter Presses

We specialize in offering a wide selection of industrial hydraulic filter presses that are made from high-quality components and have features that are long-lasting and in great demand in the market.

Following are the two types of Hydraulic Filter Presses

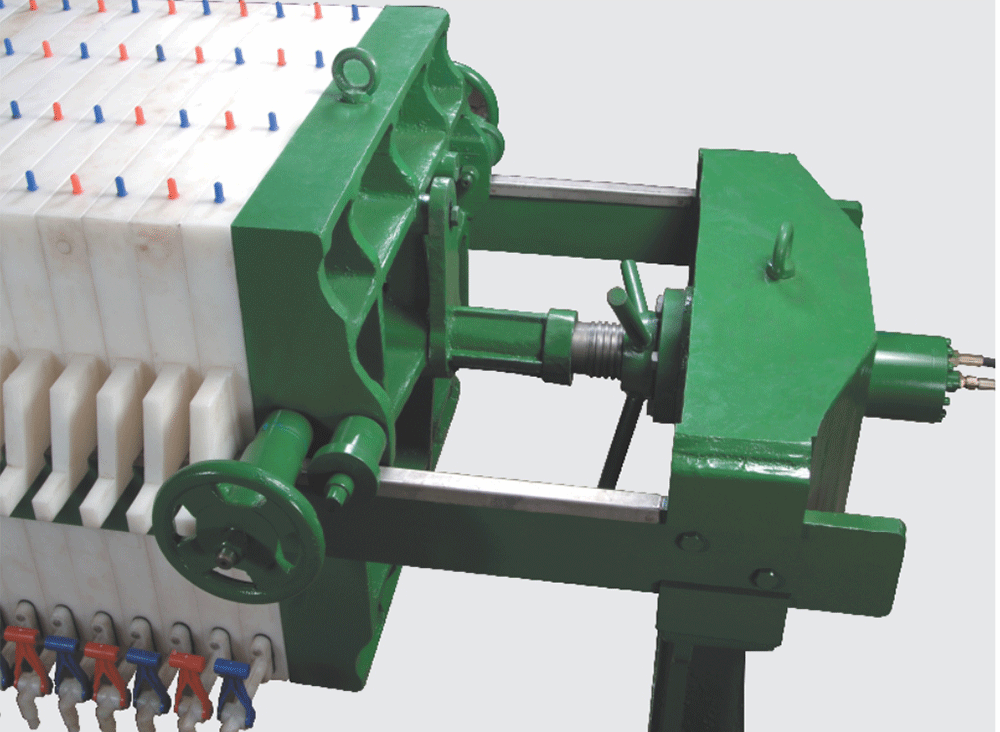

Mechanical locknut type hydraulic closing device

In this type of system, the lock nut will be tightened and opened manually at the time of opening & closing of cylinder. Pressure will be maintained by manually locking the press.

Contact us

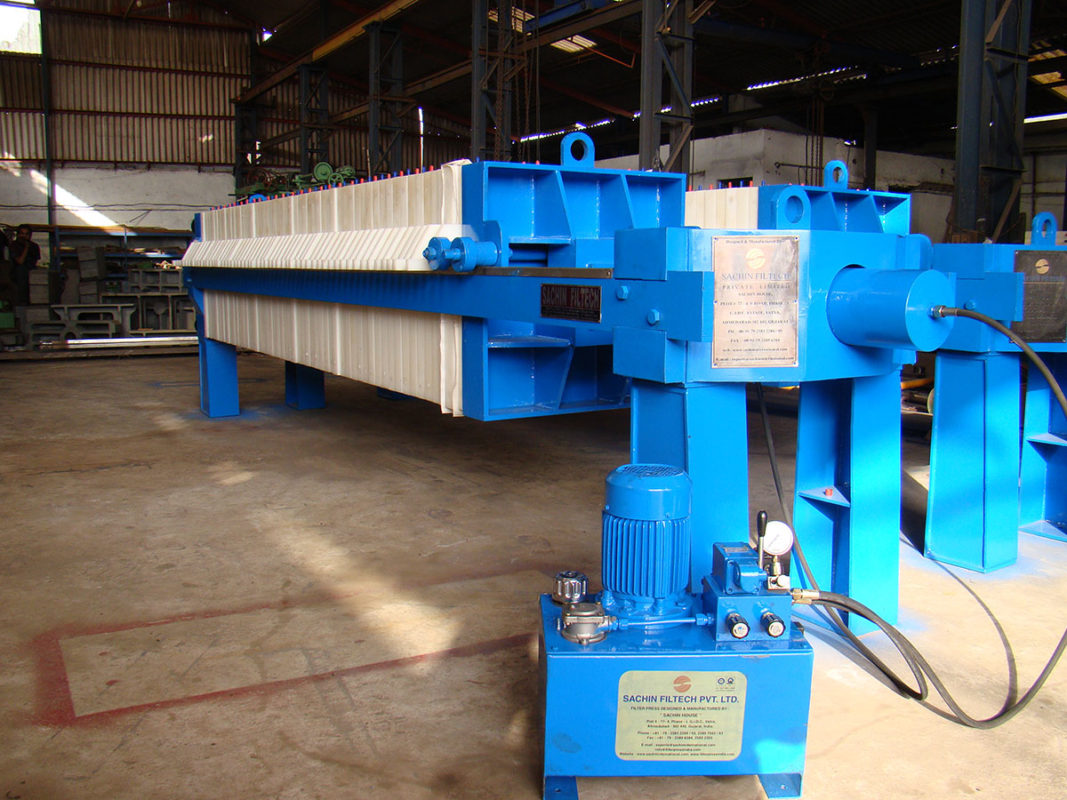

Double acting motorized AUTO hydraulic closing device

In motorized hydraulic filter press, RAM of the cylinder is coupled with moving plate hence no extra man power is required for shifting the moving plate. Motor of the power pack restarts and stops automatically at lower and upper pressure cut off.

The system will be designed to automatically maintain the proper clamping force throughout the cycle.

Contact us
Sizes Availability in mm (millimeter) 2500 x 2500 2000 x 2000 1500 x 2000 1500 x 1500
1300 x 1300 1200 x 1200 1065 x 1065 1000 x 1000
915 x 915 800 x 800 760 x 760 630 x 630
610 x 610 500 x 500 470 x 470 460 x 460
305 x 305 610 Dia 800 Dia Odds / Round
